U-DRIVE® Anchors – Magnum Packs
Hot dip galvanized, heat treated spiral shank nail-in fastener for concrete & most masonry.
FEATURES
- Originally tested by Factory Mutual – Reference report # J.I. OK3A7 .AM (4450) October 25, 1984
MAGNUM PACK
| Part No. | Anchor Length |
Fastens up to |
Case. Qty. | Case Wt. | Case Size |
| INS 118M | 1-1/8 | 1/8 | 1,000 | 13 lbs | 10-1/2″ x 5-1/2″ x 5-1/2″ |
| INS 112M | 1-1/2 | 1/2 | 1,000 | 16 lbs | 10-1/2″ x 5-1/2″ x 5-1/4″ |
| INS 2M | 2 | 1 | 1,000 | 22 lbs | 10-1/2″ x 5-1/2″ x 5-5/8″ |
| INS 212M | 2-1/2 | 1-1/2 | 1,000 | 26 lbs | 10-1/2″ x 9-1/2″ x 4-3/4″ |
| INS 3M | 3 | 2 | 1,000 | 32 lbs | 10-1/2″ x 9-1/2″ x 5″ |
| INS 312M | 3-1/2 | 2-1/2 | 1,000 | 38 lbs | 10-1/2″ x 9-1/2″ x 5-1/2″ |
| INS 4M | 4 | 3 | 500 | 21 lbs | 10-1/2″ x 5-1/2″ x 5-1/4″ |
| INS 412M | 4-1/2 | 3-1/2 | 500 | 24 lbs | 15-1/2″ x 7-1/4″ x 5-1/4″ |
| INS 5M | 5 | 4 | 500 | 27 lbs | 10-1/2″ x 5-1/2″ x 5-1/2″ |
Note:

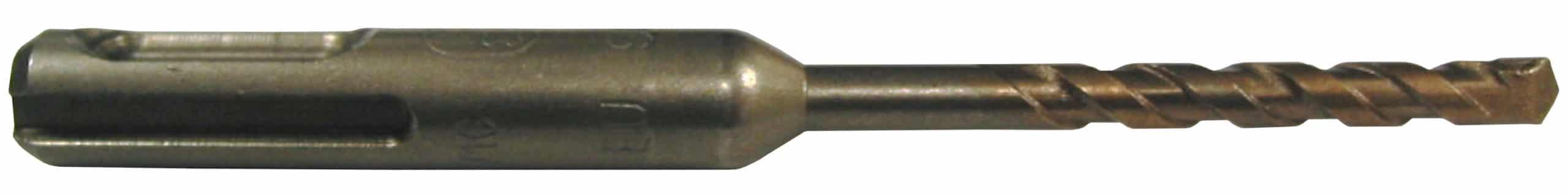

Magnum pack do not include drill bits
