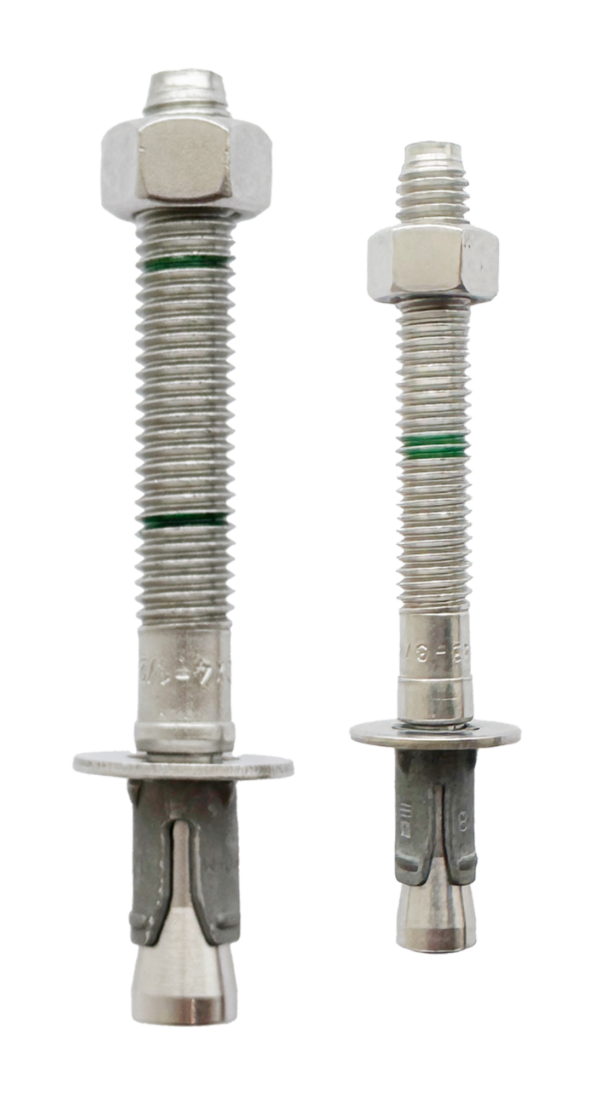

Wedge Anchors – TZ Stainless Steel Type 304
Wedge Anchors – TZ Stainless Steel Type 304
UCAN ISS TZ stainless steel anchors are fully threaded torque controlled expansion anchors assembled with a three segment expansion clip and are seismic approved for use in cracked and uncracked concrete. The anchors are manufactured from stainless steel, including the expansion clip, nut and washer. This anchor type is most suitable for corrosion resistant anchoring applications for static loading where ICC or equivalent approvals are required.
TZ STAINLESS STEEL TYPE 304 WEDGE ANCHORS
| Part No. | Size | Pkg. Qty. | Case Qty. | Case Wt. | Case Size |
| ISS383TZ | 3/8″ x 3″ | 50 | 400 | 42 lbs | 14-1/2″ x 11″ x 7″ |
| ISS38334TZ | 3/8″ x 3-3/4″ | 50 | 400 | 49 lbs | 14-1/2″ x 11″ x 7″ |
| ISS12412TZ | 1/2″ x 4-1/2″ | 50 | 150 | 39 lbs | 10-1/2″ x 10″ x 5-3/4″ |
| ISS12512TZ | 1/2″ x 5-1/2″ | 50 | 150 | 47 lbs | 10-1/2″ x 10″ x 5-3/4″ |
FEATURES:
- Surface, through and stand-off anchoring
- Fast torque – up
- ICC Approved for cracked and uncracked concrete
- Anchor size = hole size
- Fully threaded
- Length ID code and “+” symbol (strength design anchor)
TYPICAL APPLICATIONS:
- Safety equipment
- Storage racking
- Mechanical equipment
- Seating
- Pipe support
- Balcony railings
- Exterior anchoring
